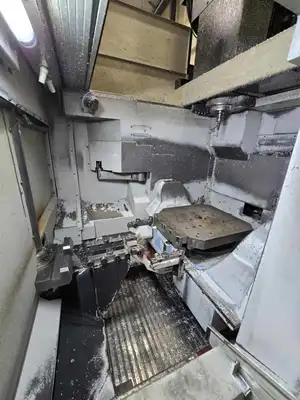

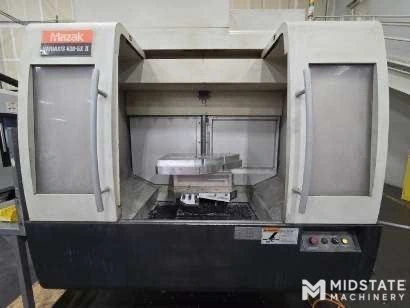

Mazak VariAxis 630-5X-II CNC Vertical Machining Center, New 2007
Vertical Machining Centers.jpg)
.jpeg)
.jpg)
.jpeg)
.jpg)
.jpeg)
.jpg)
.jpeg)
.jpeg)
.jpg)
| X | 24.8" |
| Y | 30.12" |
| Z | 20.08" |
| Power | 30 hp |
| RPM | 12,000 RPM |
| # ATC | 80 |
| Taper | Cat 40 |
| Table-W | 19.69" |
| Table-L | 19.69" |
| # Axis | 5 |
| Control | CNC (mazak) |
| Weight | 34,100 LBS |
Specifications
Table Size
19.69” x 19.69”
#/Pallets
2
Max Table Load Capacity
1102 lbs.
Product Distance From Table Top Spindle Nose
7.09" - 27.17"
X Axis Travel
24.8"
Y Axis Travel
30.12"
Z Axis Travel
20.08"
A Axis Travel
-120 +/- 30
C Axis Positioning
+/- 360 Degrees
Main Spindle RPM
12,000 RPM
Rapid Traverse Rate X
2047 IPM
Rapid Traverse Rate Y
2047 IPM
Rapid Traverse Rate Z
2047 IPM
Number of Tool Stations
80 ATC
Maximum Tool Diameter
3.15"
Max Tool Dia Adjacent Pocket Empty
4.92"
Maximum Tool Length
14.17"
Maximum Tool Weight
17.6 Lbs.
Spindle Taper
CAT 40
Main Spindle HP
30/20 HP
Mazatrol Matrix
Full 5th axis
Pallett (2)
Chip Conveyor
